LMR®-195-UF UltraFlex Communications Coax

Ideal for…
• Jumper Assemblies in Wireless Communications Systems
• Short Antenna Feeder runs
• Any application that requires additional flexibility

• LMR®- UltraFlex has a stranded center conductor and rubber outer jacket designed for multiple bending
flexing cycles. It is used for both indoor and outdoor applications.
• Flexibility and bendability are hallmarks of the LMRUF cable design. The flexible outer conductor enables
the tightest bend radius available for any cable of similar size and performance.

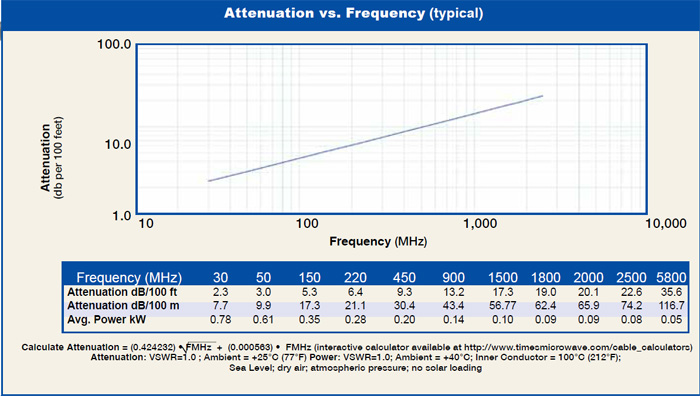

• Low Loss is another hallmark feature of LMRUF. Size for size LMR has the lowest loss of any flexible
cable and comparable loss to semirigid hard-line cables.
• RF Shielding is 50 dB greater than typical single shielded coax (40 dB). The multi-ply bonded foil outer
conductor is rated conservatively at > 90 dB (i.e. >180dB between two adjacent cables).
• Weatherability: LMR-UF cables are designed for outdoor exposure and have a life expectancy in excess
of 10 years.
• Connectors: A wide variety of connectors are available for LMR cable, including all common interface types,
reverse polarity, and solder-on center pins. Most LMR connectors employ crimp outer attachment using standard
hex crimp sizes.
• Cable Assemblies: All LMR-UF cable types are available as pre-terminated cable assemblies. Refer to
the section on FlexTech for further details.
